One of the most common questions we get in training journalists on two-factor authentication is: How hard are hardware security keys exactly? Our security training team has plenty of anecdotes to support their durability, but we decided to methodically put them to the test.
Two-factor authentication, or 2FA, is a security feature available in many websites and apps that allows you to protect your login by requiring an additional piece of information beyond your password. Usually, this comes in the form of a one-time-use code sent to your phone through a text message or generated in an authenticator app, such as Authy or FreeOTP.
Authenticator apps and text messages are good enough in most situations. However, using a hardware security key for 2FA removes many of the risks associated with the security of the phone, and helps prevent the element of human error inherent to using an authentication code received through a text message or authenticator app. Additionally, security keys that feature modern security standards — known as FIDO2 — offer robust protection against phishing attacks by automatically verifying the authenticity of the site you’re trying to log in to.
Although the cryptographic strength of the FIDO2 standard is well-established, the durability of the hardware it’s implemented on is less known. Journalism happens in the real world outside of technical whitepapers, and the ability to securely do our work depends on the ability for these tools to survive not only cryptographic attacks but the kinetic attacks of everyday life. In order to test for this, we threw three security key products on concrete, put them through a wash cycle, and ran them over with a car to prove the mettle in the silicon for our favorite phishing-prevention tool.
The contestants
There are several manufacturers making a variety of security keys, but we decided to test the more common ones we've encountered: The Yubico Security Key NFC, Nitrokey FIDO2, and Google Titan Keys (commonly used for Google's Advanced Protection program).
We conducted three durability tests on our security keys. We used a set of four new keys in each test, for a total of 12 keys.
We set up each security key for a test Google account. If we can still use it to log in, it passes the test. We used an up-to-date version of Google Chrome on macOS Mojave for testing the key with a standard USB-A connection. For keys with wireless NFC support, we used iOS 14.4 and the latest Safari on an iPhone SE (2020).
The Bluetooth-enabled Titan key did not have its Bluetooth tested, since the need for that feature was made obsolete for iPhones when iOS enabled support for NFC-enabled security keys, and the same key also has NFC support.
The drop test

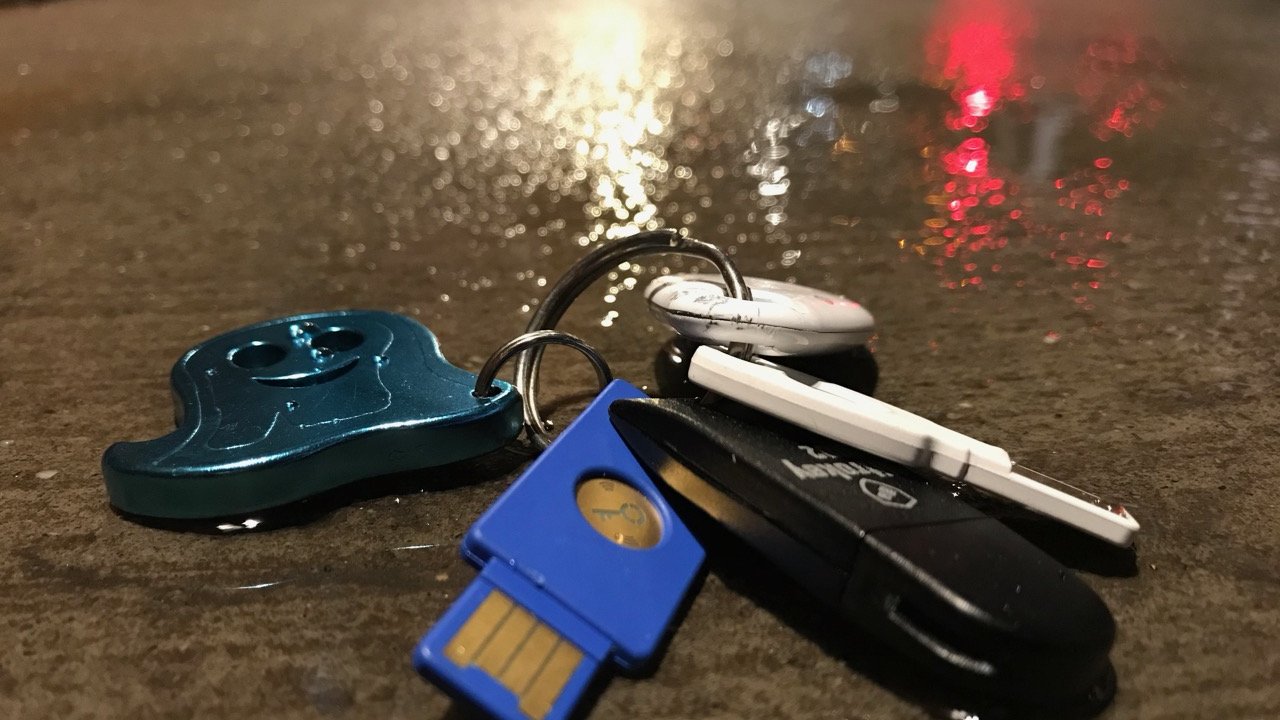

Unless you’ve been living on a space station, you and many others have dropped their keys on a hard surface at some point. Security keys are typically designed to go on a keychain, right next to your house, car, or bike lock keys, so it's important that they can survive an unexpected drop. To add a little realism to the scenario, we attached our security keys to a key chain with some house keys.*
The floor we chose is solid concrete, in this case a sidewalk at New York’s Columbia University, where actual science happens all the time, presumably like this but with more methodical testing and more serious writing. We stood on top of a two-foot-tall bench to drop our keys, simulating the vantage point of a particularly tall person.
After being thrown on the ground, each key survived with no visible damage and worked just as well as it did when it was brand new.
USB drop test results
✅ Nitrokey FIDO2
✅ Titan Key (Bluetooth and NFC)
✅ Titan Key (NFC)
✅ Yubico Security Key NFC
NFC drop test results
✅ Titan Key (Bluetooth and NFC)
✅ Titan Key (NFC)
✅ Yubico Security Key NFC
A perfect score across all tested keys.
The wash cycle test
We have no shortage of anecdotes about someone leaving their keys in the pocket of pants that end up in a washing machine. No security key in our list is advertised as waterproof, but we've been surprised at our personal security keys' ability to survive rainy weather and late-night drink spills. As with the drop test, we attached our security keys to a key ring with house keys for optimal realism (and to make it easier to fish them out of a washing machine afterward). We set a washing machine to cold water and a “medium” 30-minute cycle, subjecting the keys to both full water immersion and centrifugal force. Will our tiny defenders survive the tumultuous maelstrom of deep water dunking and unrelenting spin cycles?
Afterward, we placed each key in a container of rice, following a commonly known procedure used to dry out accidentally moistened electronics. Other desiccants, such as silica gel packets that come with new shoes, would be as effective or better, but we stuck with using rice to replicate a more realistic scenario. We placed all keys in a 16-ounce container with at least a 1-inch margin of rice above and below each key, and left them to dry for 60 hours.
At the 60-hour mark, we checked each key for dryness and tested each with a routine log-in. Although there was one very tiny six-legged insect that found a home in the rice jar, each key otherwise performed bug-free. When plugged in, all but one key blinked as cheerfully as if they'd been treated to a spa visit, albeit one where you get tossed into a cold, wet centrifuge and entombed in a jar of grain.
USB wash cycle test results
✅ Nitrokey FIDO2
✅ Titan Key (Bluetooth and NFC)
✅ Titan Key (NFC)
✅ Yubico Security Key NFC
NFC wash cycle test results
✅ Titan Key (Bluetooth and NFC)
✅ Titan Key (NFC)
❌ Yubico Security Key NFC
Another perfect score for USB tests and a reminder from NFC tests that none of these keys market themselves as waterproof; Although the Yubico Security Key continued to work well connected to USB after a wash cycle, NFC failed to let us log in.
The tire test
Although cars are not as popular for day-to-day commuting in the media capital of New York City or in San Francisco, the location of the founding office for Freedom of the Press Foundation (FPF), they're still zipping through the roads in both cities. Keys get misplaced, sometimes end up dropped on a driveway or even on an open road. Even those of us who commute on bikes or public transit travel alongside heavy motorized vehicles racing right next to us and to our loose pockets. We've already tested what would happen if the keys were to merely fall, so we figured we’d also test what would happen if they were subsequently run over by a moving vehicle, by doing exactly that.
Cybersecurity analyst Scott Hodnefield volunteered his Toyota Corolla for the effort at scenic Papago Park in Phoenix, a city with no shortage of car traffic. At roughly 5 mph, we ran over each key once going forward and a second time in reverse.
Which keys survived our fury road, forever shiny and Chrome-compatible?
USB tire test results
❌ Nitrokey FIDO2
✅ Titan Key (Bluetooth and NFC)
✅ Titan Key (NFC)
✅ Yubico Security Key NFC
NFC tire test results
✅ Titan Key (Bluetooth and NFC)
✅ Titan Key (NFC)
❌ Yubico Security Key NFC

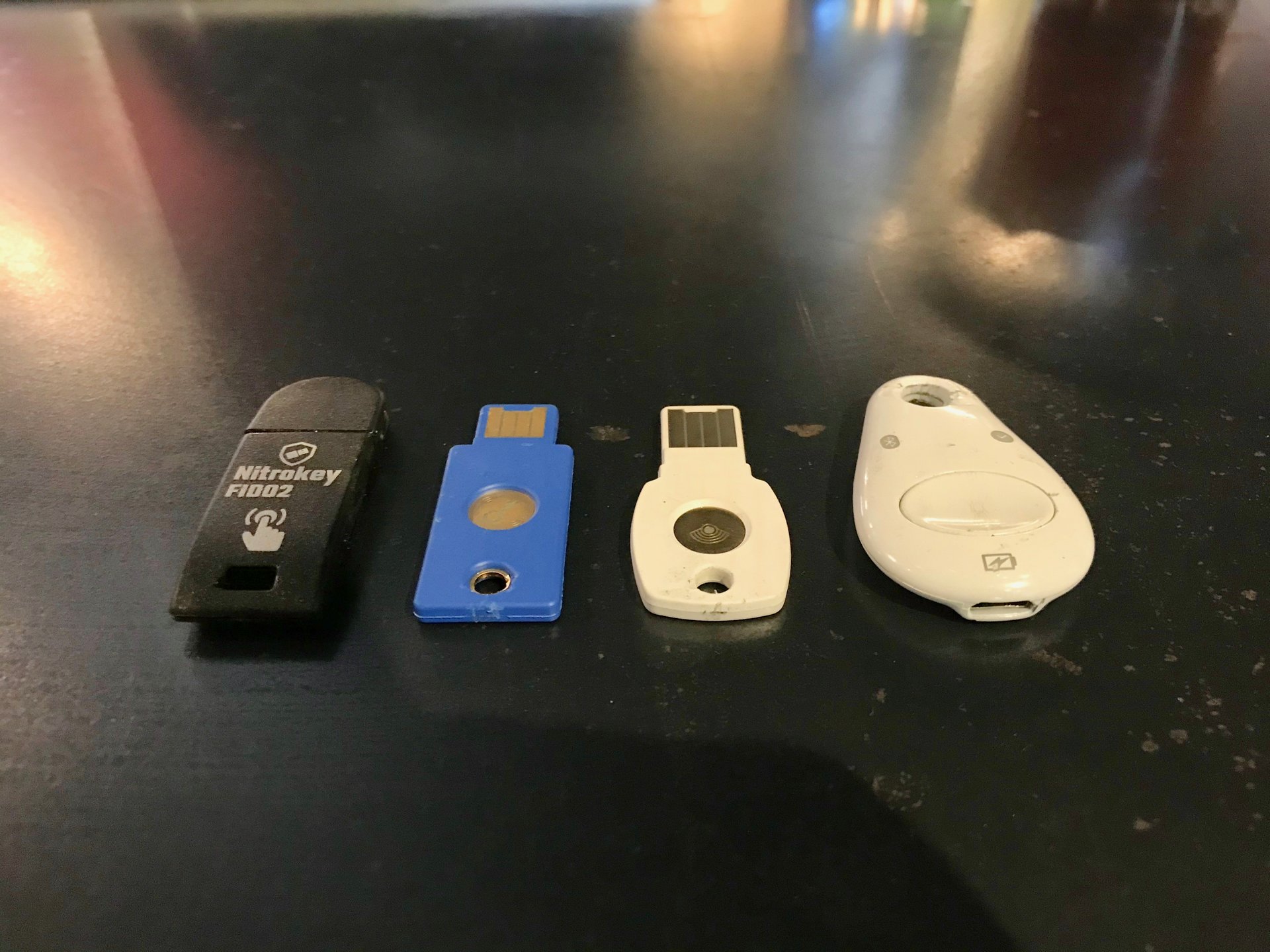

Although they looked worse for wear, all security keys except for the Nitrokey FIDO2 worked flawlessly over USB after we ran them over with a car. The Titan keys, living up to their name, were the only ones to continue to work over NFC.
Now imagine your smartphone going through the same tests
Although not all keys survived our reign of destruction, it's important to remember that almost any smartphone you can get will probably not fare nearly as well, making hardware security keys a better option than relying solely on authenticator apps or text messages for 2FA. If you'd like to learn more about how to get started with 2FA for your website or app accounts, check out our guide to two-factor authentication.
[1] These are not the house keys of anyone we know. We advise against sharing photos of your house keys on the public internet; due to 3D printing it’s now very possible to reproduce keys with just an image.
